Conveying equipment components

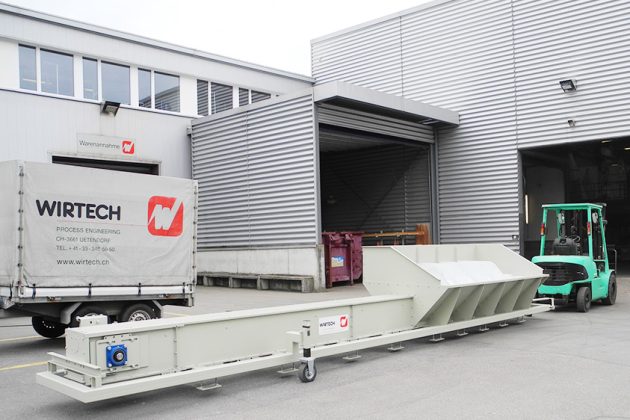

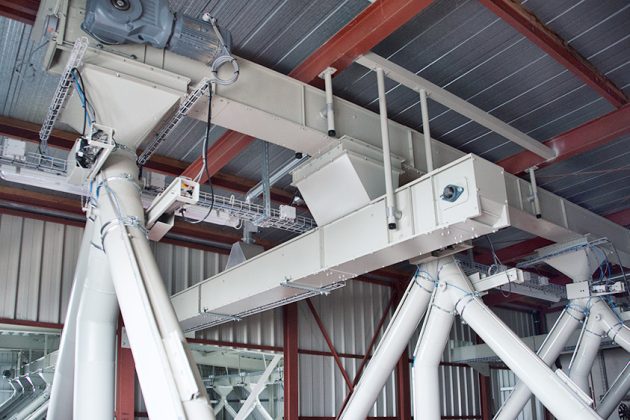

Chain conveyor

The various WIRTECH chain conveyors are suitable for conveying a wide range of bulk materials and achieve a high hourly output with relatively low energy requirements. They are suitable for horizontal and inclined conveying.

Robust sheet steel construction in element design, with gentle and very low-noise running of the chain on the plastic base. The conveyor chain is made of highly wear-resistant steel.

Several inlets and outlets are possible. Dust-tight intermediate and end outlet slides with manual or electro-pneumatic operation can be supplied as required.

Type t/h*
Production series 170 10–40
Production series 300 30–100
Production series 400 60–150
Production series 500 90–220



*depending on the specific weight of the product to be transported

Conveying speed: 0,4–0,6 m/s
